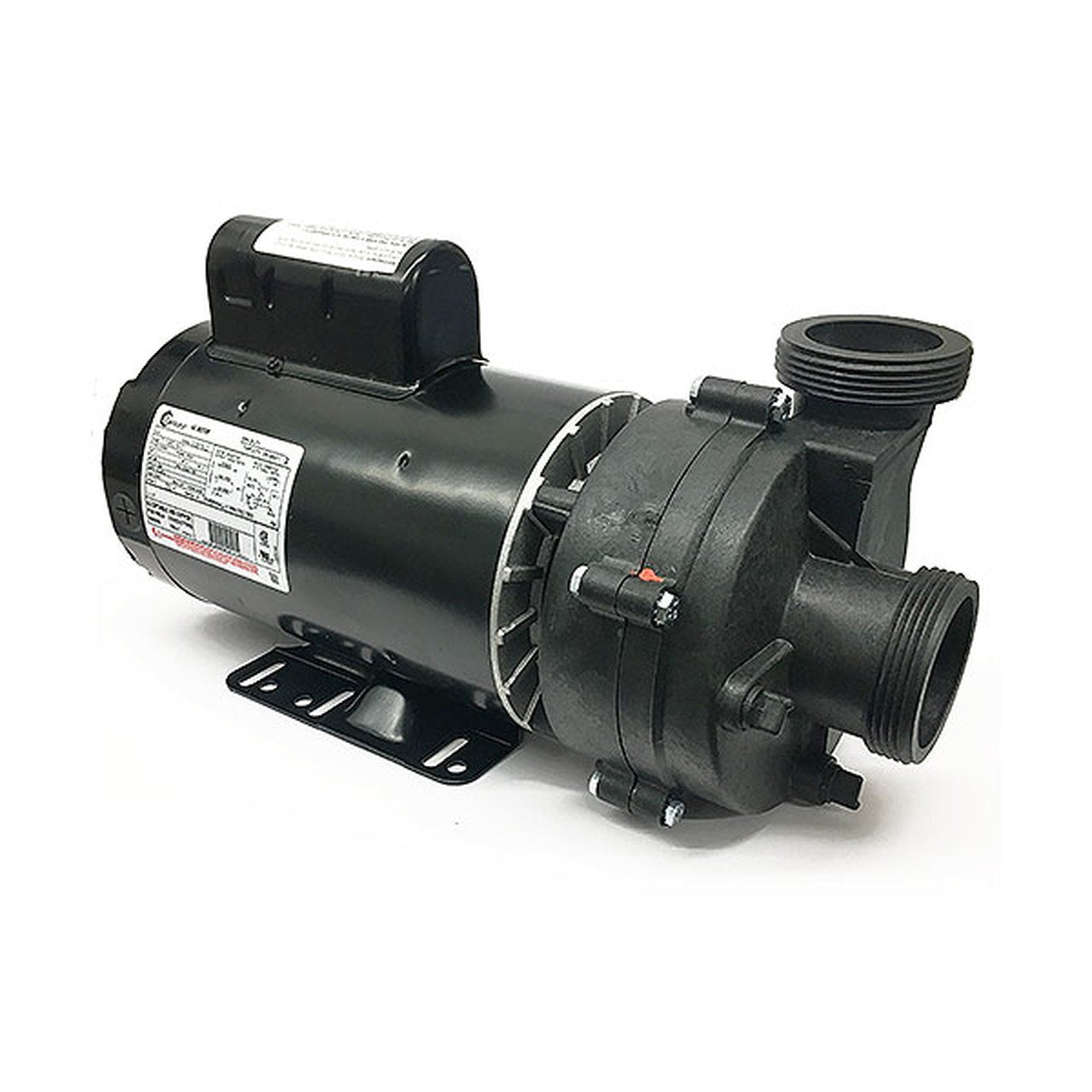

Balboa now makes the replacement hot tub pumps for the discontinued 56 frame Ultrajet and Ultimax series of pumps. Balboa pumps have the same design and foot print as the Ultrajet and Ultimax had making it a simply swap when a replacement is needed. Always ensure that the new replacement pumps high and low speed amps do not exceed your old pumps amps.
- 230 volts, 60hz
- 2 speed
- 2" intake (Measures 3" outside to outside thread)
- 2" discharge (Measures 3" outside to outside thread)
- 56 Frame motor
- 8.8 Amps on high speed (2HP)
- Balboa OEM Part #5235208-S
- New cord and unions not included
If you are replacing an older Ultra jet hot tub pump it is important to reference the high amps(OLD) instead of the HP, Ultra jet pumps HP listed on the motors is uprated. Cord and unions not included, sold separately. Ultra jet replacement pumps are now made by Balboa.
